import os
import cv2
import time
import numpy as np
import matplotlib.pyplot as plt
# %matplotlib inline
import matplotlib
from random import randint
protoFile = "googleNet/body_18/pose_deploy_linevec.prototxt"
weightsFile = "googleNet/body_18/pose_iter_440000.caffemodel"
net = cv2.dnn.readNetFromCaffe(protoFile, weightsFile)
# set CUDA as the preferable backend and target
print("[INFO] setting preferable backend and target to CUDA...")
net.setPreferableBackend(cv2.dnn.DNN_BACKEND_CUDA)
net.setPreferableTarget(cv2.dnn.DNN_TARGET_CUDA)
nPoints = 18
# COCO Output Format
keypointsMapping = ['Nose', 'Neck', 'R-Sho', 'R-Elb', 'R-Wr', 'L-Sho',
'L-Elb', 'L-Wr', 'R-Hip', 'R-Knee', 'R-Ank', 'L-Hip',
'L-Knee', 'L-Ank', 'R-Eye', 'L-Eye', 'R-Ear', 'L-Ear']
POSE_PAIRS = [[1, 2], [1, 5], [2, 3], [3, 4], [5, 6], [6, 7],
[1, 8], [8, 9], [9, 10], [1, 11], [11, 12], [12, 13],
[1, 0], [0, 14], [14, 16], [0, 15], [15, 17],
[2, 17], [5, 16]]
# index of pafs correspoding to the POSE_PAIRS
# e.g for POSE_PAIR(1,2), the PAFs are located at indices (31,32) of output, Similarly, (1,5) -> (39,40) and so on.
mapIdx = [[31, 32], [39, 40], [33, 34], [35, 36], [41, 42], [43, 44],
[19, 20], [21, 22], [23, 24], [25, 26], [27, 28], [29, 30],
[47, 48], [49, 50], [53, 54], [51, 52], [55, 56],
[37, 38], [45, 46]]
colors = [[0, 100, 255], [0, 100, 255], [0, 255, 255], [0, 100, 255], [0, 255, 255], [0, 100, 255],
[0, 255, 0], [255, 200, 100], [255, 0, 255], [0, 255, 0], [255, 200, 100], [255, 0, 255],
[0, 0, 255], [255, 0, 0], [200, 200, 0], [255, 0, 0], [200, 200, 0], [0, 0, 0]]
# Find the Keypoints using Non Maximum Suppression on the Confidence Map
def getKeypoints(probMap, threshold=0.1):
mapSmooth = cv2.GaussianBlur(probMap, (3, 3), 0, 0)
mapMask = np.uint8(mapSmooth > threshold)
keypoints = []
# find the blobs
contours, _ = cv2.findContours(mapMask, cv2.RETR_TREE, cv2.CHAIN_APPROX_SIMPLE)
# for each blob find the maxima
for cnt in contours:
blobMask = np.zeros(mapMask.shape)
blobMask = cv2.fillConvexPoly(blobMask, cnt, 1)
maskedProbMap = mapSmooth * blobMask
_, maxVal, _, maxLoc = cv2.minMaxLoc(maskedProbMap)
keypoints.append(maxLoc + (probMap[maxLoc[1], maxLoc[0]],))
return keypoints
# Find valid connections between the different joints of a all persons present
def getValidPairs(output):
valid_pairs = []
invalid_pairs = []
n_interp_samples = 10
paf_score_th = 0.1
conf_th = 0.7
# loop for every POSE_PAIR
for k in range(len(mapIdx)):
# A->B constitute a limb
pafA = output[0, mapIdx[k][0], :, :]
pafB = output[0, mapIdx[k][1], :, :]
pafA = cv2.resize(pafA, (frameWidth, frameHeight))
pafB = cv2.resize(pafB, (frameWidth, frameHeight))
# Find the keypoints for the first and second limb
candA = detected_keypoints[POSE_PAIRS[k][0]]
candB = detected_keypoints[POSE_PAIRS[k][1]]
nA = len(candA)
nB = len(candB)
# If keypoints for the joint-pair is detected
# check every joint in candA with every joint in candB
# Calculate the distance vector between the two joints
# Find the PAF values at a set of interpolated points between the joints
# Use the above formula to compute a score to mark the connection valid
if (nA != 0 and nB != 0):
valid_pair = np.zeros((0, 3))
for i in range(nA):
max_j = -1
maxScore = -1
found = 0
for j in range(nB):
# Find d_ij
d_ij = np.subtract(candB[j][:2], candA[i][:2])
norm = np.linalg.norm(d_ij)
if norm:
d_ij = d_ij / norm
else:
continue
# Find p(u)
interp_coord = list(zip(np.linspace(candA[i][0], candB[j][0], num=n_interp_samples),
np.linspace(candA[i][1], candB[j][1], num=n_interp_samples)))
# Find L(p(u))
paf_interp = []
for k in range(len(interp_coord)):
paf_interp.append([pafA[int(round(interp_coord[k][1])), int(round(interp_coord[k][0]))],
pafB[int(round(interp_coord[k][1])), int(round(interp_coord[k][0]))]])
# Find E
paf_scores = np.dot(paf_interp, d_ij)
avg_paf_score = sum(paf_scores) / len(paf_scores)
# Check if the connection is valid
# If the fraction of interpolated vectors aligned with PAF is higher then threshold -> Valid Pair
if (len(np.where(paf_scores > paf_score_th)[0]) / n_interp_samples) > conf_th:
if avg_paf_score > maxScore:
max_j = j
maxScore = avg_paf_score
found = 1
# Append the connection to the list
if found:
valid_pair = np.append(valid_pair, [[candA[i][3], candB[max_j][3], maxScore]], axis=0)
# Append the detected connections to the global list
valid_pairs.append(valid_pair)
else: # If no keypoints are detected
# print("No Connection : k = {}".format(k))
invalid_pairs.append(k)
valid_pairs.append([])
# print(valid_pairs)
return valid_pairs, invalid_pairs
# This function creates a list of keypoints belonging to each person
# For each detected valid pair, it assigns the joint(s) to a person
# It finds the person and index at which the joint should be added. This can be done since we have an id for each joint
def getPersonwiseKeypoints(valid_pairs, invalid_pairs):
# the last number in each row is the overall score
personwiseKeypoints = -1 * np.ones((0, 19))
for k in range(len(mapIdx)):
if k not in invalid_pairs:
partAs = valid_pairs[k][:, 0]
partBs = valid_pairs[k][:, 1]
indexA, indexB = np.array(POSE_PAIRS[k])
for i in range(len(valid_pairs[k])):
found = 0
person_idx = -1
for j in range(len(personwiseKeypoints)):
if personwiseKeypoints[j][indexA] == partAs[i]:
person_idx = j
found = 1
break
if found:
personwiseKeypoints[person_idx][indexB] = partBs[i]
personwiseKeypoints[person_idx][-1] += keypoints_list[partBs[i].astype(int), 2] + valid_pairs[k][i][
2]
# if find no partA in the subset, create a new subset
elif not found and k < 17:
row = -1 * np.ones(19)
row[indexA] = partAs[i]
row[indexB] = partBs[i]
# add the keypoint_scores for the two keypoints and the paf_score
row[-1] = sum(keypoints_list[valid_pairs[k][i, :2].astype(int), 2]) + valid_pairs[k][i][2]
personwiseKeypoints = np.vstack([personwiseKeypoints, row])
return personwiseKeypoints
# capture video
video_path = "assets/mma.mp4"
cap = cv2.VideoCapture(video_path)
# Check if video file is opened successfully
if (cap.isOpened() == False):
print("Error opening video stream or file")
# We need to set resolutions.
# so, convert them from float to integer.
frame_width = int(cap.get(3))
frame_height = int(cap.get(4))
size = (frame_width, frame_height)
# result = cv2.VideoWriter('pose.avi',
# cv2.VideoWriter_fourcc(*'MJPG'),
# 15, size)
# Define the codec and create VideoWriter object
fps = 5
frame_width = int(cap.get(cv2.CAP_PROP_FRAME_WIDTH))
frame_height = int(cap.get(cv2.CAP_PROP_FRAME_HEIGHT))
size = (int(frame_width), int(frame_height))
fourcc = cv2.VideoWriter_fourcc('m', 'p', '4', 'v')
path = 'C:/Users/zchen/PycharmProjects/opencv/googleNet/record'
out = cv2.VideoWriter()
success = out.open(os.path.join(path, "mma.mov"), fourcc, fps, size, True)
total = 0
count = 0
while (cap.isOpened()):
# Capture frame-by-frame
ret, frame = cap.read()
start = time.time()
frameWidth = frame.shape[1]
frameHeight = frame.shape[0]
if ret == True:
inHeight = 368
inWidth = int((inHeight / frameHeight) * frameWidth)
# frame = cv2.resize(frame, (inHeight, inWidth), cv2.INTER_AREA)
# process the frame here
inpBlob = cv2.dnn.blobFromImage(frame, 1.0 / 255, (inWidth, inHeight), (0, 0, 0), swapRB=False, crop=False)
net.setInput(inpBlob)
output = net.forward()
# print(type(output))
detected_keypoints = []
keypoints_list = np.zeros((0, 3))
keypoint_id = 0
threshold = 0.1
for part in range(nPoints):

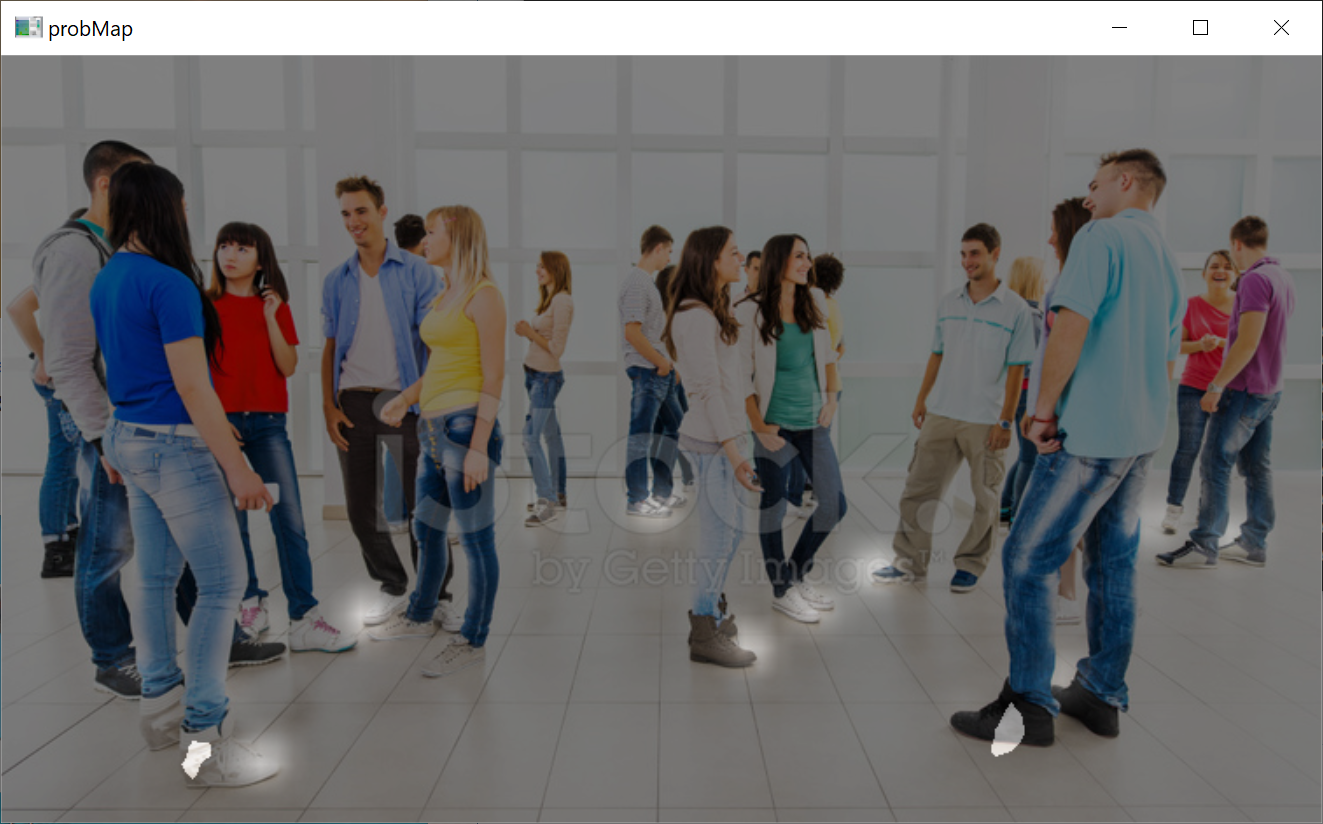

probMap = output[0, part, :, :]
probMap = cv2.resize(probMap, (frame.shape[1], frame.shape[0]))
# plt.figure()
# plt.imshow(255*np.uint8(probMap>threshold))
keypoints = getKeypoints(probMap, threshold)
print("Keypoints - {} : {}".format(keypointsMapping[part], keypoints))
keypoints_with_id = []
for i in range(len(keypoints)):
keypoints_with_id.append(keypoints[i] + (keypoint_id,))
keypoints_list = np.vstack([keypoints_list, keypoints[i]])
keypoint_id += 1
detected_keypoints.append(keypoints_with_id)
# frameClone = frame.copy()
for i in range(nPoints):
for j in range(len(detected_keypoints[i])):
cv2.circle(frame, detected_keypoints[i][j][0:2], 5, [0, 255, 255], -1, cv2.LINE_AA)
# plt.figure(figsize=[15,15])
# plt.imshow(frameClone[:,:,[2,1,0]])
valid_pairs, invalid_pairs = getValidPairs(output)
personwiseKeypoints = getPersonwiseKeypoints(valid_pairs, invalid_pairs)
for i in range(17):
for n in range(len(personwiseKeypoints)):
index = personwiseKeypoints[n][np.array(POSE_PAIRS[i])]
if -1 in index:
continue
B = np.int32(keypoints_list[index.astype(int), 0])
A = np.int32(keypoints_list[index.astype(int), 1])
cv2.line(frame, (B[0], A[0]), (B[1], A[1]), colors[i], 3, cv2.LINE_AA)
# plt.figure(figsize=[15,15])
# plt.imshow(frameClone[:,:,[2,1,0]])
cv2.imshow('frameclone', frame)
out.write(frame)
if cv2.waitKey(1) & 0xFF == ord('q'):
break
count += 1
total += (time.time() - start)
print(count, count / total, (time.time() - start))
# Break the loop
else:
break
out.release()
cap.release()
cv2.destroyAllWindows()
-----------------------
#logs
Keypoints - Nose : [(1065, 528, 0.6999403)]
Keypoints - Neck : [(1136, 504, 0.63968205), (877, 388, 0.7440788)]
Keypoints - R-Sho : [(1158, 481, 0.45033738), (971, 387, 0.75994366)]
Keypoints - R-Elb : [(994, 529, 0.7064167)]
Keypoints - R-Wr : [(971, 645, 0.7172611)]
Keypoints - L-Sho : [(1135, 527, 0.74793553), (783, 411, 0.6718034)]
Keypoints - L-Elb : [(1160, 622, 0.64027196), (713, 575, 0.6784791)]
Keypoints - L-Wr : [(1135, 692, 0.46578476), (621, 692, 0.7087032)]
Keypoints - R-Hip : [(924, 693, 0.53040093), (1323, 552, 0.28071627)]
Keypoints - R-Knee : [(1275, 738, 0.21219043)]
Keypoints - R-Ank : []
Keypoints - L-Hip : [(831, 715, 0.5052447), (1323, 574, 0.5223487)]
Keypoints - L-Knee : [(854, 951, 0.56000316), (1392, 716, 0.7037562)]
Keypoints - L-Ank : [(1580, 739, 0.39099985)]
Keypoints - R-Eye : []
Keypoints - L-Eye : [(1065, 527, 0.7943738)]
Keypoints - R-Ear : [(901, 246, 0.8871688)]
Keypoints - L-Ear : [(1088, 504, 0.9218901), (784, 246, 0.9275103)]
reference:
model download
Part Affinity Field (PAF) algorithm explaination
