Tuesday, January 31, 2023

arcGIS model builder


drag and drop buffer on model builder

double click on buffer and update setting

update clip setting

right click on clip output -> add to display

run the model

save model -> add new toolbox -> save

add summary tool

run model -> right click open table
reference:

Monday, January 30, 2023

arcGIS maplex


right click on frame -> data property -> select maplex label engine

open label manager -> click expression

placement property -> fitting -> options -> force split

uncheck overrun -> check reduce font size -> options

conflict resolution -> interior weight 0, boundary weight 600

after labeling adjustment

parcel boundary -> length as text

label position -> position -> offset straight

label offset

fitting strategy

conflict resolution

boundary length are displayed

use abbreviate label for street
reference:

Saturday, January 28, 2023

arcGIS linear referencing


arcCatalog -> toolbox -> system -> data management -> layers and table -> make feature

arcCatalog -> toolbox -> system -> data management -> linear measure -> create route

arcCatalog -> toolbox -> system -> data management -> linear measure -> calibrate

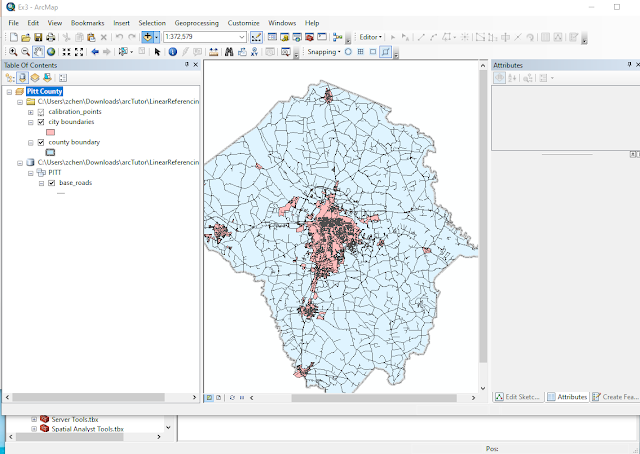

arcMap -> open map

add routes and calibrated routes

customize -> customize mode -> command tab
drag and drop identify route location to toolbar

identify route

find route

right click on route layer -> property -> route -> show anomaly

geoprocessing -> search

fill accident event

fill paving event

display both events

selection -> select by attribute

display accidents that has 2 or more injuries

editor -> more tools -> route editing

query route named cornerstone

open base road attribute table, display selected
reference:

Thursday, January 26, 2023

arcGIS geocode


arcCatalog -> open database

new -> address locator

arcMap -> geocode toolbar -> locator manager -> add created locator

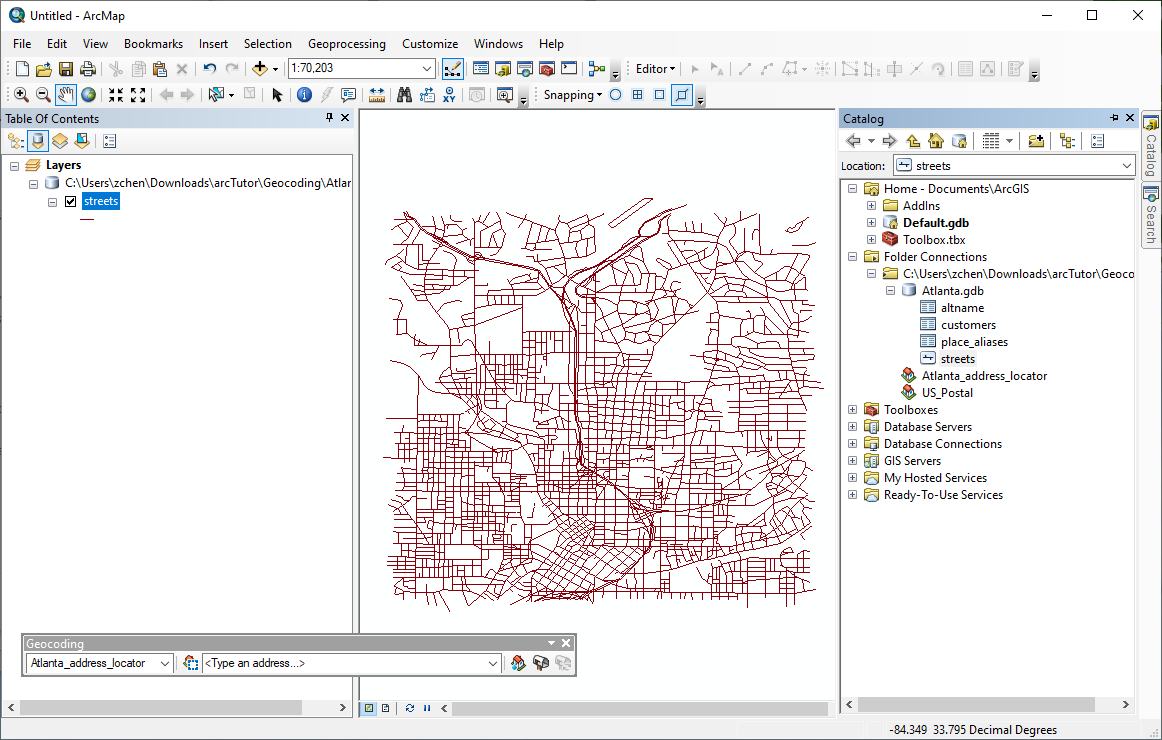

drag and drop street file from catalog

geocode toolbar -> right click on address -> add label point

right click on customer table -> geocode -> select locator

geocode toolbar -> review -> select unmatched address

select id 33 on review table -> pick address from map
find 33 from street layer -> pan to -> right click -> pick points
address is matched
reference:

Orlando Travel Guide





Sunday, January 22, 2023

Orlando trip

expense
Jan 22 - plane ticket(p), phone(p), uber
Jan 23 - plane ticket, field dinner
Jan 24 - headset, hotel, gas, uber

timesheet
Jan 21 - remote troubleshoot - 8h
Jan 22 - manufacture psu 6h, travel to Orlando 12h
Jan 23 - travel 4h, troubleshoot - 12h
Jan 24 - ground testing 4h, fly back Calgary 8h

Friday, January 20, 2023

昆明新城

arcMap parcel editor 2


parcel editor -> maintain control point -> check fit

parcel editor -> adjust

run adjustment failed

parcel toolbar -> point report -> map error point location
table of content -> right click on point layer -> label feature

parcel toolbar -> mean point

points are merged

job book records adjustments

adjustment successful
reference:
