add a plane, e to extrude

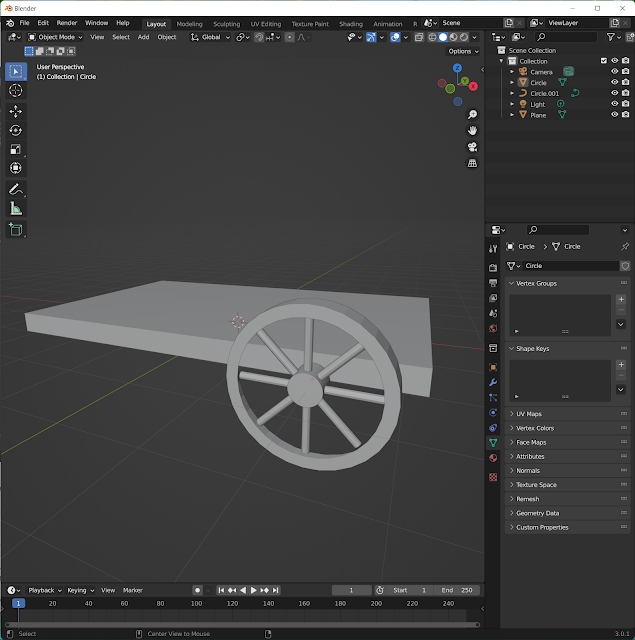

add a circle, f to fill, e to extrude, i to inset, x to delete faces
alt + edge select inner circle, f to fill
i to inset, select 8 spokes, p to separate, x to delete faces
object convert spokes to curve, object property -> geometry -> increase depth
alt + edge select axis circle, f to fill, e to extrude
object convert spokes to mesh, shift select wheel, ctrl + j to join

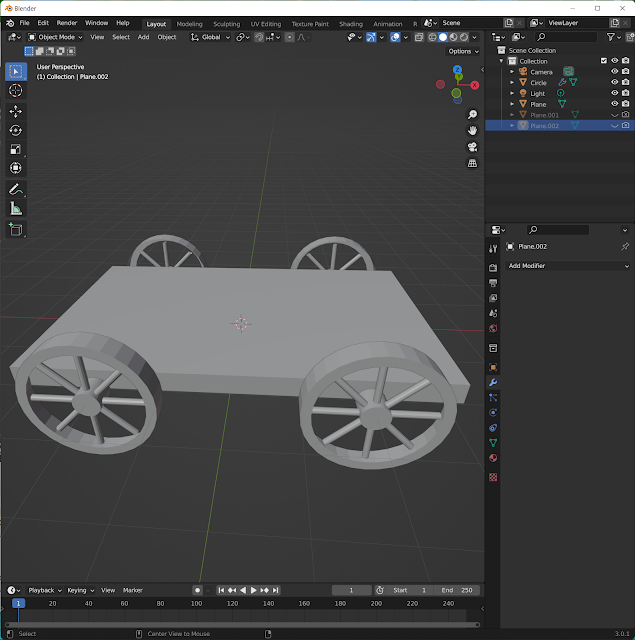

add mirror modifier for wheels
select base plane, shift + d to duplicate, p to separate
select separated plane, s to scale, e to extrude, s to scale
ctrl + r to loop cut, select middle line, turn on proportional edit
g + z to move, select 3 loop cut lines, ctrl + b to bevel
